Click here for printable versionBumperFlex Tape

BumperFlex is a highly resilient flexible polyurethane based tape coated with an aggressive pressure sensitive adhesive. This tough, yet durable material is ideal for preventing squeaks & rattles. It also offers protection against scratches and is the perfect way to create a non-slip base over a large area due to it’s high coefficient of friction.

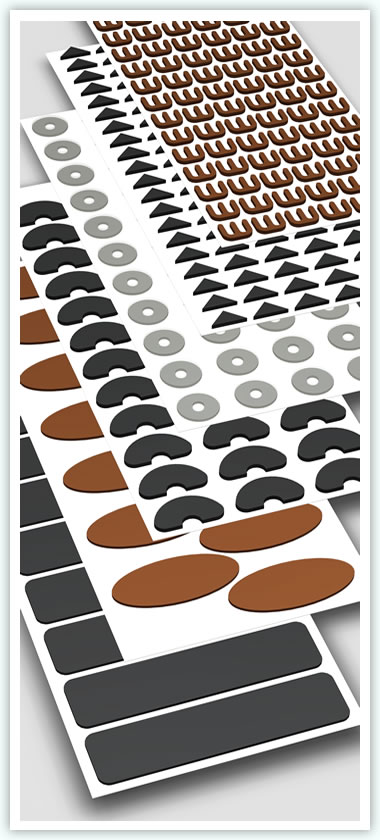

BumperFlex protective tapes are supplied on a roll with a thick backing paper suitable for die-cutting into roll form for automated applications. A BumperFlex feature is that it’s easily
die cut into pads, discs, washers, gaskets or squares to suit almost any job.

Technical Information

Polyurethane Physical Properties

Property   Test Method   Transparent Coloured
Hardness (shore A)   ASTN D-2240   68-76 68-76

Tensile Strength (Mpa)   BS903   2.7 MN/m2 2.9 MN/m2

Elongation (%)   BS903   126% 160%

Tear Strength (KN/m)   BS903   11.5 kN/m 13 kN/m

Abrasion Resistance   BS EN 5470-1:1999   175 160

Load Tolerance 21°c to 60°       Min 3 MPa   Min 3 MPa

Flame Retardancy   UL94HB   Pass Pass

Kinetic coefficient of friction   ASTM D-1894-78

    A. Stainless Steel
B. Glass
D. High impact polystyrene

Compression Set 40°c (%)   BS903   Max 5   Max 5

Slitting tolerance - + 0.5mm   Thickness tolerance - + 0.5%   Shelf Life - 12 months when stored in original packaging at room temperature

Adhesive Data

6000 Series Rubber Adhesive
The 6000 series adhesive is an aggressive high tack adhesive system, which displays good instant tack, high peel and shear properties.
4000 Series Acrylic Adhesive
This is an adhesive with good shear strength and a higher end use temperature.
Usually preferred for applications where good ageing properties are a required feature.
    Properties   6000 Series 4000 Series
Adhesive Characteristics   System
Backing Liner
  Solvent Rubber
120 gsm paper
Solvent Acrylic
120 gsm paper

Adhesive Performance   Shear Strength @ 21¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C
Shear Strength @ 49°C

Application Temperature       15¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C to 55¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C 10¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C to 60¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C

End Use Temperature       -10¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C to 65¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C -20¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C to 70¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C


BumperFlex Tape

Applying BumperFlex

It is important to remember, that as with any self adhesive product, the surface to which they are being applied must be clean, dry and free from dust and dirt. Therefore, to gain maximum adhesion, clean the surface with low strength solvent and allow to dry thoroughly before use. Please follow solvent manufacturers’ instructions for safety. The information provided above have been gained under laboratory conditions. It is important customers test BumperFlex themselves to ensure suitability for intended applications.
All BumperFlex tapes are RoHS and Wee compliant.
