BumperStops ProtectionSuperSoft door dampening product

Technical Information

Polyurethane Physical Properties

Property   Test Method   Transparent
Hardness (shore A)   ASTN D-2240   53-55

Tensile Strength (Mpa)   BS903   2.3 MN/m2

Elongation (%)   BS903   165%

Tear Strength (KN/m)   BS903   13.0 kN/m

Abrasion Resistance   BS EN 5470-1:1999   0.35g loss

Flame Retardancy   UL94HB   Pass

Application Temperature       -20¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тƬ¨¬®¬¨‚Ä¢C to 80¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тƬ¨¬®¬¨‚Ä¢C

Kinetic coefficient of friction   ASTM D-1894-78

Shelf Life‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚àö√´‚Äö√†√∂‚Äö√†√á‚Äö√Ñ√∂‚àö‚Ć‚àö‚àÇ‚Äö√†√∂‚àö¬¥‚Äö√Ñ√∂‚àö‚Ć‚àö‚àÇ‚Äö√†√∂‚àö√∫12 months when stored in original packaging at room temperature   A. Stainless Steel
B. Glass
C. Smooth PVC floor Tile
D. High impact polystyrene

Adhesive Data

6000 Series Rubber Adhesive
The 6000 series adhesive is an aggressive high tack adhesive system, which displays good instant tack, high peel and shear properties. Usually chosen for applications which require high levels of initial tack.
Standard adhesive for this range unless otherwise stated
    Properties   6000 Series 4000 Series
Adhesive Characteristics   System
Backing Liner
Adhesive Feature
  Solvent Rubber
120 gsm paper
High initial tack
Solvent Acrylic
120 gsm paper
Good ageing properties

Adhesive Performance   Shear Strength @ 21¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C
Shear Strength @ 49°C

Application Temperature       15¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C to 65¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C 10¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C to 65¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C

End Use Temperature       -10¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C to 80¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C -20¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C to 80¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C

Recommended Storage
      21¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C 21¬¨¬®¬¨¬Æ¬¨¬®¬¨√Ü‚Äö√Ñ√∂‚àö√ë‚àö‚àÇ‚Äö√†√∂‚Äö√тĆ‚Äö√†√∂¬¨‚Ñ¢C

Exposure to the Environment

BumperStops are intended for interior applications where physical properties will remain unchanged. When used externally for extended periods, some discolouration as well as loss of adhesion may occur.

Click here for printable version

Load Tolerance Information

SuperSoft BumperStops are not recommended for load bearing
applications, as they are manufactured from a softer than usual
polyurethane material and are intended for door dampening applications only.
If customers wish to use this product for such applications they should
be aware that much lower values will be achieved. Please refer to the
chart below before use.

Compression tests conducted at ambient temperature (24ºC)

Product   colour   Profile   Kg per bumper
PD. 9025C   Transparent   Hemispherical
PD.9010C   Transparent   Hemispherical
PD.9125C   Transparent   Cylindrical
PD.9931C   Transparent   Special Shape



Adhesive Considerations

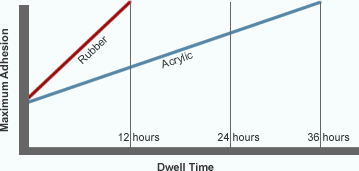

Please refer to the chart which illustrates the relative adhesion properties of the adhesive systems used in BumperStops.

In general terms, allow time (dwell) to increase the surface contact and adhesion. Please note that acrylic based adhesives generally require longer dwell times than rubber based adhesive.

Adhesion properties


Applying BumperStops

It is important to remember that, as with any self adhesive product, the surface to which you are applying BumperStops must be clean, dry and free from dust and dirt. Therefore, to gain maximum adhesion, clean the surface with low strength solvent and allow to dry thoroughly. Please follow solvent manufacturers’ instructions for safety. The information provided above have been gained under laboratory conditions, therefore customers must test BumperStops themselves to ensure suitability for intended applications.
All BumperStops are RoHS and Wee compliant.
